Product SKUs

SYS-7049GP-TRT

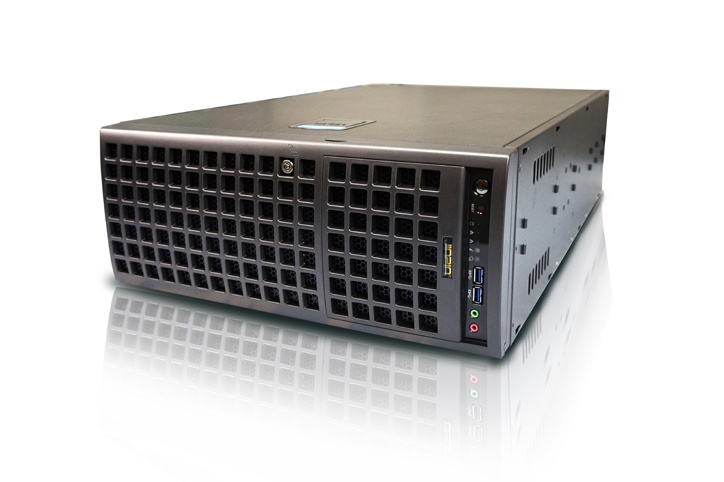

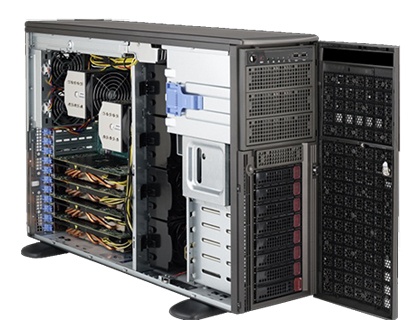

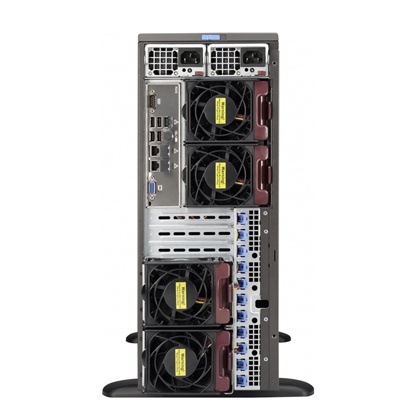

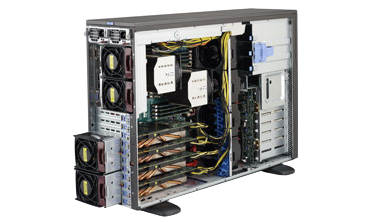

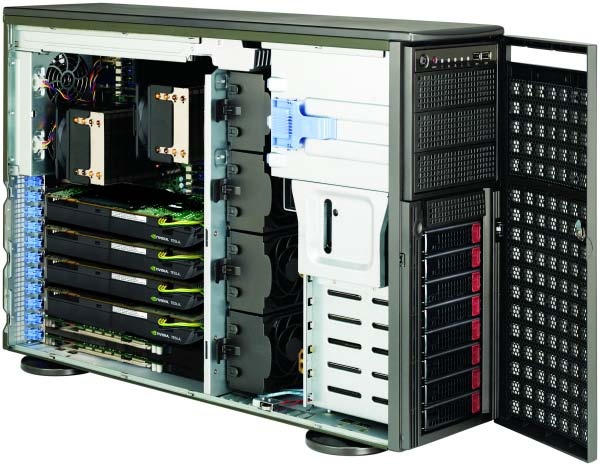

SuperServer 7049GP-TRT (Black)

Processor

 CPU

Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors?；3 UPI up to 10.4GT/s

Support CPU TDP 70-205W

 Cores

  Up to 28 Cores

 Note

BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU Support

Please refer to:

 System Memory

 Memory Capacity

16 DIMM slots

Up to 4TB 3DS ECC DDR4-2933MHz? RDIMM/LRDIMM

Supports Intel® Optane? DCPMM??

Memory Type

2933?/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note

? 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
?? Cascade Lake only. Contact your Supermicro sales rep for more info.

 On-Board Devices

 Chipset

 Intel® C621 chipset

 SATA

 SATA3 (6Gbps) RAID 0, 1, 5, 10

Network Controllers

Intel® X550 Dual Port 10GBase-T

Virtual Machine Device Queues reduce I/O overhead

Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

 IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

 Graphics

ASPEED AST2500 BMC

 Input / Output

SATA

10 SATA3 (6Gbps) ports

LAN

2 RJ45 10GBase-T ports

1 RJ45 Dedicated IPMI LAN port

 USB

5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)

4 USB 2.0 ports (2 rear, 2 via headers)

 Video

1 VGA port

 Serial Port / Header

2 COM ports (1 rear, 1 Header)

 System BIOS

 BIOS Type

   AMI 32Mb SPI Flash ROM

 Management

 Software

Intel®Node Manager；IPMI 2.0； SSM , SPM ,SUM； SuperDoctor®5

 PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory；

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment；

Thermal Control for fan connectors

Dimensions and Weight

Height

18.2" (462mm)

Width

17.2" (437mm)

Depth

   26.5" (673mm)

Package

27" (H) x 13" (W) x 38" (D)

Weight

Net Weight: 46 lbs (20.9 kg)

Gross Weight: 62 lbs (28.1 kg)

Available Colors

Dark Gray

Front Panel

Buttons

Power On/Off button

System Reset button

LEDs

Power LED

Hard drive activity LED

Network activity LEDs

System Overheat & Power Fail LED

Expansion Slots

PCI-Express

4 PCI-E 3.0 x16 (double-width) slots

2 PCI-E 3.0 x16 (single-width) slots

1 PCI-E 3.0 x4 (in x8 slot)

Drive Bays / Storage

Hot-swap

8 Hot-swap 3.5" drive bays

Optional 4x 2.5" NVMe supported

M.2

1 NVMe based M.2 SSD

   Form Factors: 2280, 22110

System Cooling

Fans

4 Heavy duty fans；2 Rear exhaust fans；2 Optional Rear fans (required for Passive GPUs)

Heatsink

2 Active heatsink with optimal fan speed control

Power Supply

2000W Redundant Power Supplies with PMBus

Total Output Power

1200W with Input 100-127Vac

1800W with Input 200-220Vac

1980W with Input 220-230Vac

2090W with Input 230-240Vac

2200W with Input 220-240Vac (for UL/cUL use only)

2090W with Input 230-240Vdc (for CCC only)

AC InputFrequency

50-60Hz

Dimension (W x H x L)

76 x 40 x 336 mm

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non condensing)

Non-operating Relative Humidity:5% to 95% (non-condensing)
