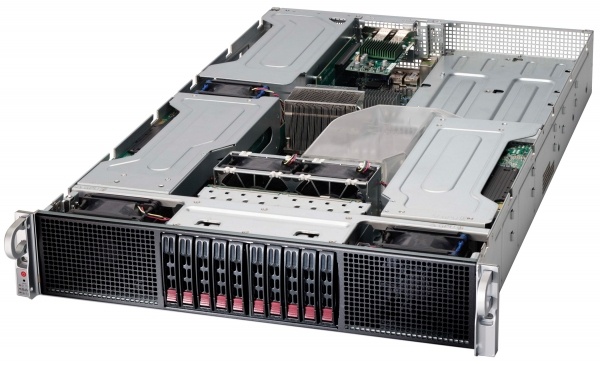

首頁 - 產品中心 - 服務器 - 超微服務器 - 超微supermicro 2029GP-TR
1. Supports up to 6 GPUs；
2. Dual Socket P (LGA 3647) support, 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)；
3. 16 DIMMs; up to 4TB 3DS ECC DDR4
2933MHz RDIMM/LRDIMM, Supports Intel® Optane? DCPMM；
4. 6 PCI-E 3.0 x16 slots (FHFL), 1 PCI-E 3.0x8 (in x16) slot (LP)；
5. 8 Hot-swap 2.5" SAS/SATA drive
bays, 2 Hot-swap 2.5" SATA/NVMe drive bays；
6. 1 SIOM for flexible Networking；
7. 5x 80mm heavy duty fans with optimal fan speed control；
8. 2000W (1+1) Redundant Power Supplies Platinum Level (94%).
異構加速
l超微 2029GP-TR 支持2顆Intel® Xeon® Platinum/Gold/Silver/ Bronze 系列可擴展處理器，同時借助6塊NVIDIA新一代Turing架構的GPU加速器CUDA 核、Tensor核、RT核等特性，相比CPU處理速度提升數十倍。
穩定可靠
l采用獨特的GPU散熱設計，保障GPU有效散熱不降頻使用；供電模塊采用2000W鉑金級電源，1+1冗余設計，允許在電源模塊故障情況下系統不宕機，不中斷工作。
支持環境
l購買整機可以協助安裝深度學習SDK(CUDA、cuDNN、NCCL)、深度學習框架包括Caffe、 TensorFlow、PyTorch、MXNet、所有必要的驅動程序。 縮短軟件部署周期，提升工作效率。
應用場景
lHPC、深度學習、GPU虛擬化、圖形渲染、科學計算、人工智能、油氣勘探等計算密集型應用。
超微GPU服務器、工作站、深度學習工作站安心購買
|
Product SKUs |
|
|
SYS-2029GP-TR |
SuperServer 2029GP-TR |
|
Processor |
|
|
CPU |
Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable
Processors?, |
|
Cores |
Up to 28 Cores |
|
Note |
*Processors ending N or S (such as 6230N, 5220S) are not supported |
|
Note |
? BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
|
GPU |
|
|
Supported GPUs |
6 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) NVIDIA V100, M10, T4, Quadro RTX;Compatible GPU list |
|
CPU-GPU Interconnect |
PCI-E Gen 3 x16 Switch CPU-GPU Interconnect |
|
System Memory |
|
|
Memory Capacity |
16 DIMM slots ; Up to 4TB 3DS ECC DDR4-2933MHz? RDIMM/LRDIMM ; Supports Intel® Optane? DCPMM?? |
|
On-Board Devices |
|
|
Chipset |
Intel® C621 chipset |
|
SATA |
SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
|
IPMI |
Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
|
Graphics |
ASPEED AST2500 BMC |
|
Input / Output |
|
|
LAN |
1 RJ45 Dedicated IPMI LAN port |
|
USB |
2 USB 3.0 ports (rear) |
|
Video |
1 VGA port |
|
Serial Port / Header |
1 Fast UART 16550 header |
|
System BIOS |
|
|
BIOS Type |
AMI 256Mb SPI Flash ROM |
|
Management |
|
|
Software |
Intel® Node Manager；IPMI 2.0；KVM with dedicated LAN；SSM, SPM, SUM；SuperDoctor® 5； Watch Dog |
|
Power Configurations |
ACPI / APM Power Management |
|
PC Health Monitoring |
|
|
CPU |
Monitors for CPU Cores, Chipset Voltages, Memory；4+1 Phase-switching voltage regulator |
|
FAN |
Fans with tachometer monitoring ; Status monitor for speed control ; Pulse Width Modulated (PWM) fan connectors |
|
Temperature |
Monitoring for CPU and chassis environment； Thermal Control for fan connectors |
|
Dimensions and Weight |
|
|
Height |
3.5" (89mm) |
|
Width |
17.2" (437mm) |
|
Depth |
31" (787mm) |
|
Package |
26.5" (H) x 11" (W) x 44.5" (D) |
|
Weight |
Net Weight: 39.5 lbs (17.9 kg) ; Gross Weight: 54 lbs (24.5 kg) |
|
Available Colors |
Black |
|
Front Panel |
|
|
Buttons |
Power On/Off button ; System Reset button |
|
LEDs |
Power LED ; Hard drive activity LED ; Network activity LEDs System Overheat LED / Fan fail LED / UID LED |
|
Expansion Slots |
|
|
PCI-Express |
6 PCI-E 3.0 x16 (FHFL) slots - supporting up to 6 GPUs ; 1 PCI-E 3.0 x8 (in x16, LP) slot |
|
Drive Bays |
|
|
Hot-swap |
8 Hot-swap 2.5" SAS/SATA drive bays ; 2 Hot-swap 2.5" SATA/NVMe drive bays |
|
System Cooling |
|
|
Fans |
5x 8cm Heavy duty fans with optimal fan speed control |
|
Power Supply |
|
|
2000W 1U Redundant Power Supplies with PMBus |
|
|
Total Output Power |
1000W: 100 - 120Vac ;1800W: 200 - 220Vac ;1980W: 220 - 230Vac ;2000W: 230 - 240Vac ;1980W: 200 - 240Vac (UL/cUL only) ;2000W: 200 - 240Vdc (for CCC only) |
|
Dimension |
73.5 x 40 x 265 mm |
|
Input |
100-120Vac / 12.5-10.5A / 50-60Hz ;200-220Vac / 10-9.5A / 50-60Hz ;220-230Vac / 10-9.8A / 50-60Hz 230-240Vac / 10-9.8A / 50-60Hz ;200-240Vac / 10-9.8A (UL/cUL only) ; 200-240Vdc / 10-9.1A (CCC only) |
|
+12V |
Max: 83.3A / Min: 0.1A (100-120Vac) ; Max: 150A / Min: 0.1A (200-220Vac) ; Max: 165A / Min: 0.1A (220-230Vac) Max: 166.7A / Min: 0.1A (230-240Vac) ; Max: 166.7A / Min: 0.1A (200-240Vac) (UL/cUL only) |
|
12V SB |
Max: 3.5A / Min: 0A |
|
Output Type |
25 Pairs Gold Finger Connector |
|
Operating Environment |
|
|
RoHS |
RoHS Compliant |
|
Environmental Spec. |
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) ; Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: |
