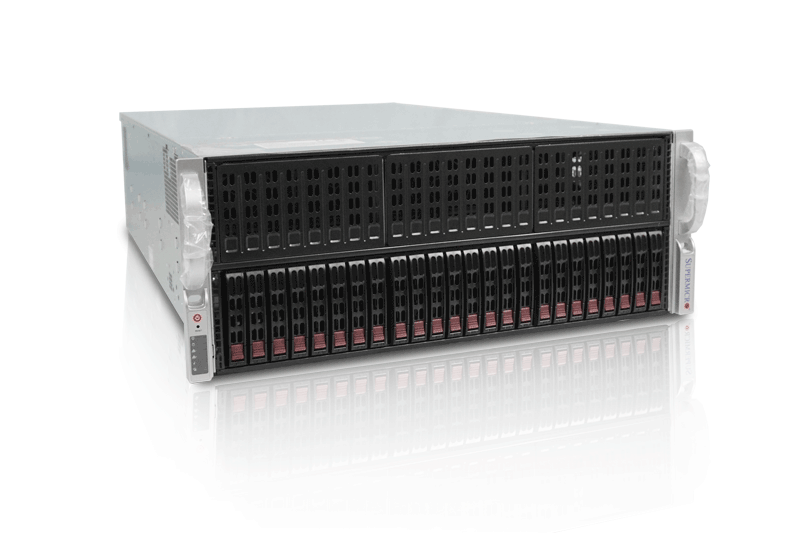

首頁 - 產品中心 - 服務器 - 超微服務器 - 超微supermicro 4029GP-TRT2
1. Dual Socket P (LGA 3647) support，2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
2. 24 DIMMs; up to 6TB 3DS
ECC DDR4-2933MHz? RDIMM/LRDIMM,Supports
Intel®Optane? DCPMM
3. 11 PCI-E 3.0 x16 (FH, FL) slots，1 PCI-E 3.0 x8 (FH, FL in x16 slot)
4. Up to 24 Hot-swap 2.5" drive
bays; 8x 2.5" SATA drives supported with included H/W, 2x
2.5" NVMe drives supported with included H/W, 1 NVMe based M.2 SSD
5. 2x 10GBase-T LAN ports via Intel C622
6. 8 Hot-swap 92mm RPM cooling fans
7. 2000W (2+2) Redundant Power，Supplies Titanium Level (96%+)
異構加速
l支持2顆Intel® Xeon® Platinum/Gold/Silver/Bronze 系列可擴展處理器，同時借助8塊NVIDIA新一代Volta架構的GPU加速器CUDA核、Tensor核、RT核等特性，相比CPU處理速度提升數百倍。
穩定可靠
l采用獨特的GPU散熱設計，保障GPU有效散熱不降頻使用；供電模塊采用2000W鉑金級電源，2+2冗余設計，允許在電源模塊故障情況下系統不宕機，不中斷工作。
支持環境
l購買整機可以協助安裝深度學習SDK(CUDA、cuDNN、NCCL)、深度學習框架包括Caffe、 TensorFlow、PyTorch、MXNet、所有必要的驅動程序。 縮短軟件部署周期，提升工作效率。
應用場景
lHPC、深度學習、GPU虛擬化、圖形渲染、科學計算、人工智能、油氣勘探等計算密集型應用。
超微GPU服務器、工作站、深度學習工作站安心購買
|
SYS-4029GP-TRT2 |
SuperServer 4029GP-TRT2 |
|
Processor |
|
|
CPU |
Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors?,3 UPI up to 10.4GT/s Support CPU TDP 70-205W |
|
Cores |
Up to 28 Cores |
|
Note |
? BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
|
GPU |
|
|
Supported GPUs |
10 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) NVIDIA V100, P40, T4, Quadro, RTX ；Supports both active and passive cooled GPUs |
|
CPU-GPU Interconnect |
PCI-E Gen 3 x16 Switch Single-Root |
|
GPU-GPU Interconnect |
PCI-E, NVIDIA® NVLink? Bridge (Optional) |
|
System Memory |
|
|
Memory Capacity |
24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz? RDIMM/LRDIMM Supports Intel® Optane? DCPMM?? |
|
Memory Type |
2933?/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
|
Note |
? 2933MHz in two DIMMs per channel can be
achieved by using memory purchased from Supermicro |
|
On-Board Devices |
|
|
Chipset |
Intel® C622 chipset |
|
SATA |
SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
|
Network Controllers |
Dual Port 10GbE from C622 |
|
IPMI |
Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
|
Graphics |
ASPEED AST2500 BMC |
|
Input / Output |
|
|
SATA |
8 SATA3 (6Gbps) ports |
|
LAN |
2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port |
|
USB |
4 USB 3.0 ports (rear) |
|
Video |
1 VGA Connector |
|
Serial Port / Header |
1 COM port (header) |
|
System BIOS |
|
|
BIOS Type |
AMI 32Mb SPI Flash ROM |
|
Management |
|
|
Software |
Intel® Node Manager；IPMI 2.0；KVM with dedicated LAN SSM, SPM, SUM；SuperDoctor® 5； Watchdog |
|
PC Health Monitoring |
|
|
CPU |
Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
|
FAN |
Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
|
Temperature |
Monitoring for CPU and chassis environment Thermal Control for fan connectors |
|
Dimensions and Weight |
|
|
Height |
7.0" (178mm) |
|
Width |
17.2" (437mm) |
|
Depth |
29" (737mm) |
|
Weight |
Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg) |
|
Available Colors |
Black |
|
Expansion Slots |
|
|
PCI-Express |
11 PCI-E 3.0 x16 (FHFL) slots - supporting up to 10 GPUs 1 PCI-E 3.0 x8 (FH, FL, in x16) slot |
|
Drive Bays / Storage |
|
|
Hot-swap |
Up to 24x 2.5" SAS/SATA drive bays 8x 2.5" SATA supported natively 2x 2.5" NVMe supported natively |
|
M.2 |
1 NVMe based M.2 SSD Form Factors: 2260, 2280, 22110 |
|
System Cooling |
|
|
Fans |
8 Hot-swap 92mm cooling fans |
|
Power Supply |
|
|
2000W Redundant Power Supplies with PMBus |
|
|
Total Output Power |
1000W: 100 – 120Vac； 1800W: 200 – 220Vac； 1980W: 220 – 230Vac；2000W: 230 – 240Vac 2000W: 200 – 240Vac (UL/CUL only) |
|
Dimension (W x H x L) |
73.5 x 40 x 265 mm |
|
Input |
100-120Vac / 12.5-9.5A / 50-60Hz 200-220Vac / 10-9.5A / 50-60Hz 220-230Vac / 10-9.8A / 50-60Hz 230-240Vac / 10-9.8A / 50-60Hz 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) |
|
+12V |
Max: 83.3A / Min: 0A (100-120Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 166.7A / Min: 0A (230-240Vac) Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) |
|
Output Type |
25 Pairs Gold Finger Connector |
|
Operating Environment |
|
|
RoHS |
RoHS Compliant |
|
Environmental Spec. |
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non condensing) Non-operating Relative Humidity:5% to 95% (non-condensing) |
